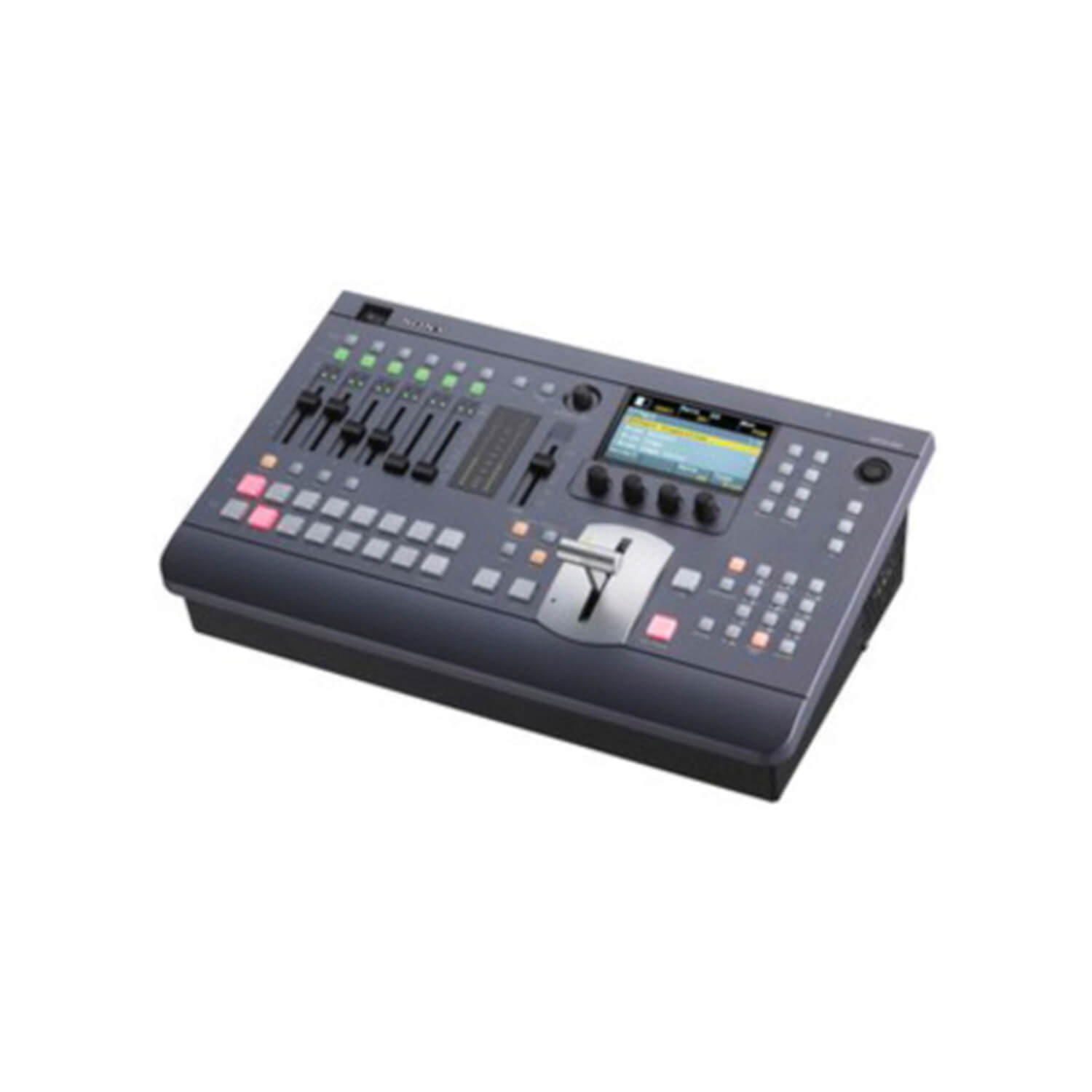

Sony Live Switcher

The MCS8M from Sony is an A/V switcher with an integrated audio mixer and frame synchronizer. A user-friendly device, it boasts numerous preset DME wipe patterns, a built-in multi-viewer, single-channel frame memory output, and an Input Freeze function for every source. It also features the ability to import still images using a USB port, plus a 3D Mode function, six-channel audio mixer, AUX MIX and more! Designed for easy, intuitive operation, the MCS8M contains tools ideal for content creation and event programming.

General

Formats HD MODE: HD 1080 / 59.94i, 1080 / 50i, 720 / 59.94p, 720 / 50p
SD MODE: SD 480 / 59.94i, 576 / 50i
Input and Output Connectors VIDEO INPUTS:
HD mode:
4x HD-SDI: BNC (SMPTE-292M, 299M, 259M-C, 272M-A)
3x HDMI (Type A)
1x DVI-I: SXGA, WXGA, XGA, HDTV60 (1080 / 60p), HDTV50 (1080 / 50p) with Frame Synchronizer

SD mode:
4x SD-SDI: BNC
3x Composite: BNC
1x DVI-I: SXGA, WXGA, XGA with Frame Synchronizer 1

VIDEO OUTPUTS:
HD mode:
4x HD-SDI: 1x PGM, 2x AUX, 1x Multi Viewer: BNC (SMPTE-292M, 299M, 259M-C, 272M-A)
1x Multi Viewer DVI-D (WUXGA, HDTV, SXGA, WXGA, XGA)
1x AUX DVI-D

SD mode:
4x SD-SDI: 1x PGM, 2x AUX, 1x Multi Viewer: BNC (SMPTE-292M, 299M, 259M-C, 272M-A)
1x Multi Viewer DVI-D (SXGA, WXGA, XGA)
1x AUX DVI-D
1x Composite (AUX): BNC 2

AUDIO INPUTS:
4x SDI (Embedded)
3x HDMI (Embedded)
2x MIC / LINE (XLR / TRS combo: Balance)
4x MIC / LINE (TRS phone: Balance)
2x LINE (Phono jack: Unbalance)

AUDIO OUTPUTS:
3x SDI (Embedded)
2x PGM (XLR: Balance)
2x AUX (TRS phone: Balance)
2x MON (TRS phone: Balance)
2x MIX (Phono jack: Unbalance)
1x Headphone (standard stereo)
