Evertz CP2032 XY Panel

Evertz CP2032 XY Panel

The CP-2032E features assignable and dynamic LCD button technology. Each of the LCD buttons is capable of displaying a multiple character text string, graphics or custom characters. The CP-2032E panel has 32 buttons laid out in two 16 button rows.

These panels are ideal in applications where changes to sources and destinations are needed regularly e.g. OB trucks or other applications where you need to pre-configure panels to suit different or recurring tasks.

General

Formats Not specified by manufacturer
Input and Output Connectors Joystick
Qlink
Ethernet
Manufacturerhttp://www.evertz.com/
ManualClick Here For Manual
Inquire
https://tvboynyc.com/wp-content/uploads/2019/03/xy-panel.jpg
Inquire

Converters and Switchers

Rental Gear

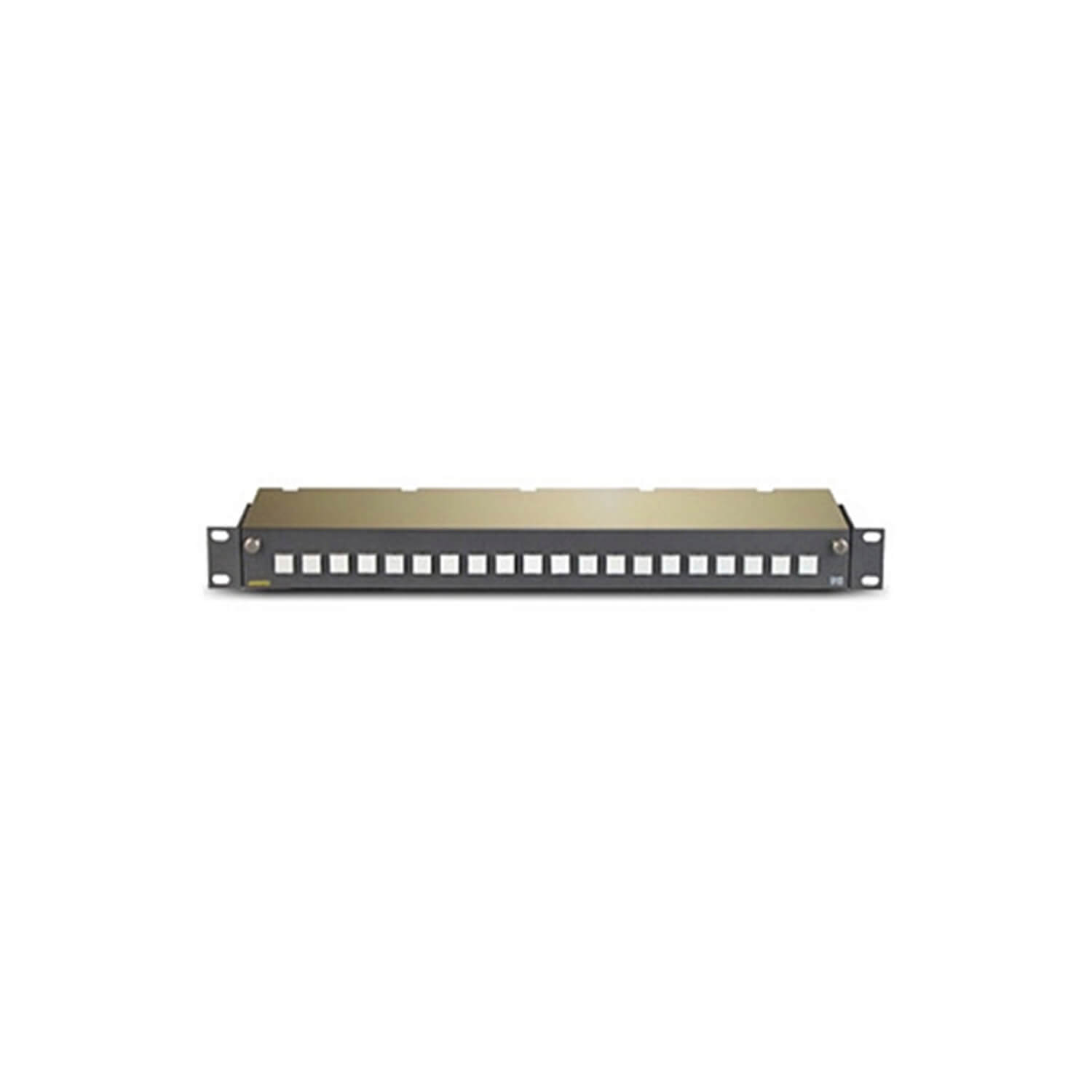

Evertz CP-1604E Panel

Evertz CP-1604E Panel

The CP-1604E is a versatile programmable panel with 20 illuminated push buttons. A wide range of panel operations including XY and multi-destination may be configured.

Buttons can be individually configured for any combination of source, destination or control function. For instance, this panel can be configured as a 16 button-per-source panel leaving four buttons for lock, destinations, etc.

General

Formats Not specified by manufacturer
Input and Output Connectors Joystick
Qlink
Ethernet
Manufacturerhttp://www.evertz.com/
ManualClick Here For Manual
Inquire
https://tvboynyc.com/wp-content/uploads/2019/03/cp-panel.jpg
Inquire

Converters and Switchers

Rental Gear

Evertz 7700DA7-3G DA Cards

Evertz 7700DA7-3G DA Cards

Provide distribution of your SMPTE ST 424, SMPTE ST 292-1 and SMPTE ST 259 serial digital video signals at rates of 3Gb/s, 1.5Gb/s and 270Mb/s. The DA supports all other all other SMPTE ST 344, SMPTE ST 259, SMPTE ST 310 and DVB-ASI data rates in a non-reclocked mode (540Mb/s, 360Mb/s, 143Mb/s, 19.4Mb/s).

Ideal in applications where a large quantity of outputs is required, the DA features an auto-equalized input with seven isolated reclocked outputs.

General

Formats SMPTE ST 424 (3Gb/s), SMPTE ST 292-1 (1.5Gb/s), SMPTE ST 259 (270Mb/s)
Input and Output Connectors BNC per IEC 61169-8 Annex A
Manufacturerhttp://www.evertz.com/
ManualClick Here For Manual
Inquire
https://tvboynyc.com/wp-content/uploads/2019/03/cards.jpg
Inquire

Converters and Switchers

Rental Gear

Decimator MD-DUCC

Decimator MD-DUCC

The MD-DUCC is the latest converter to come from Decimator Design. Convert ANY video format/frame rate to ANY other video format/frame rate.

General

Formats Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD and SD to SD conversions
Input and Output Connectors 3x CVBS / YPbPr / RGB / CVBS & YC
2x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically
1x HDMI output
Manufacturerhttp://decimator.com
ManualClick Here For Manual
Brochure Click Here For Brochure
Inquire
https://tvboynyc.com/wp-content/uploads/2019/03/ducc.jpg
Inquire

Converters and Switchers

Rental Gear

AJA 1×6 3GDA

AJA 1×6 3GDA

The 3GDA 1×6 3G/HD/SD-SDI Reclocking Distribution Amplifier from AJA accepts and automatically detects 3G HD-SDI, HD-SDI, or SDI input signal and distributes it to separately buffered outputs. Input signals are reclocked and equalized before being transmitted. All ancillary data in the signal is passed from the input to the outputs.

General

Formats 3Gb, 1.5Gb, 270Mb Auto Select
Input and Output Connectors INPUT:
1x HD-SDI, SDI (SMPTE 259/292/296/424) on BNC connector

OUTPUTS:
6x 3G HD-SDI, HD-SDI, SDI on BNC connectors
Manufacturerhttp://www.aja.com/en
ManualClick Here For Manual
Inquire
https://tvboynyc.com/wp-content/uploads/2019/03/3dhd.jpg
Inquire

Converters and Switchers

Rental Gear

AJA Hi5

AJA Hi5

The Hi5 converts SDI or HD-SDI to HDMI for driving HDMI monitors. Embedded SD/HD-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5 provides 2-Channel RCA style audio outputs for separate audio monitoring if needed. The Hi5 also provides a looping SD/HD-SDI output useful for connecting additional equipment, or for “daisy chaining” multiple monitors to the same SD-HD-SDI source.

General

Formats 525i, 625i,
720p 50/59.94/60,
1080i 50/59.94/60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, and 1080p30
Input and Output Connectors INPUT:
1x HDMI

OUTPUTS:
SMPTE-259/274/292/296 SD/HD-SDI, 1x BNC
Manufacturerhttp://www.aja.com/en
ManualClick Here For Manual
Inquire
https://tvboynyc.com/wp-content/uploads/2019/03/aja.jpg
Inquire

Converters and Switchers

Rental Gear

AJA Ha5

AJA Ha5

The HA5 converts HDMI to SDI or HD-SDI. Up to eight channels of HDMI audio are embedded into the SD/HD-SDI output allowing a convenient single cable audio/video connection. The HA5 provides two SD/HD-SDI outputs and supports long HDMI cables on the input. The HA5 is useful for connecting HDMI cameras to SD/HD-SDI equipment.

General

Formats 525i, 625i,
720p 50/59.94/60,
1080i 50/59.94/60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, and 1080p30
Input and Output Connectors INPUT:
1x HDMI

OUTPUTS:
SMPTE-259/292/296 SDI/HD-SDI, 2x BNC
Manufacturerhttp://www.aja.com/en
ManualClick Here For Manual
Inquire
https://tvboynyc.com/wp-content/uploads/2019/03/ha5.jpg
Inquire

Converters and Switchers

Rental Gear

Leader LV 5330 Multi-SDI Monitor

Leader LV 5330 Multi-SDI Monitor

The LV 5330 Multi-SDI Test Monitor from Leader is designed for on-camera and portable applications. It offers picture, waveform, vector, audio, and status screens that can be displayed individually or in multi-screen representations. It also includes Cinelite and Cinezone on-picture measurement functions to facilitate readings that can be understood both by technical and operational personnel.

General

Formats Not specified by manufacturer
Input and Output Connectors SMPTE 291M
SMPTE 299M (HD-SDI)
SMPTE 272M (SD-SDI)
Manufacturerhttp://www.leaderamerica.com
ManualClick Here For Manual
Inquire
https://tvboynyc.com/wp-content/uploads/2019/03/leader.jpg
Inquire

Converters and Switchers

Rental Gear

Blackmagic Analog to SDI

Blackmagic Analog to SDI

The Mini Converter Analog to SDI from Blackmagic will accept an HD/SD component, NTSC, PAL, or S-video signal and convert it to an SDI output. You can also choose to embed SDI audio from balanced AES/EBU or analog audio inputs. Use this device to convert video from Betacam SP, VHS, set-top boxes, HDV cameras, and other similar devices.

General

Formats Analog Format support:
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.

SDI Format Support:
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
Input and Output Connectors 1x component, NTSC, PAL, and S-video via 3x BNCs
2x SDI (switchable between SD, HD & 3Gbs SDI)
Manufacturerhttp://www.blackmagicdesign.com/
Inquire
https://tvboynyc.com/wp-content/uploads/2019/03/blackmagic.jpg
Inquire

Converters and Switchers

Rental Gear

Kramer VS-81HD SDI Switcher

Kramer VS-81HD SDI Switcher

The VS-81HD 8×1:2 HD-SDI Switcher from Kramer is designed to manage SDI (SMPTE 259M and SMPTE 344M) and HD-SDI (SMPTE 292M) video signals. It can switch any one of 8 inputs to 2 identical outputs.

General

Formats Not specified by manufacturer
Input and Output Connectors INPUTS:
8x SDI SMPTE-259M, 292M, 344M serial video, 75 Ohms on BNC connectors
1x Genlock 75 Ohms/Hi-Z on looping BNC connectors, bi-level, tri-level sync

OUTPUTS:
2x identical equalized and reclocked SMPTE-259M, 292M, 344M outputs 75 Ohms on BNC connectors
1x Genlock 75 Ohms/Hi-Z loop on BNC connectors
Manufacturerhttp://www.kramerelectronics.com/
ManualClick Here For Manual
Inquire
https://tvboynyc.com/wp-content/uploads/2019/03/kramer.jpg
Inquire
